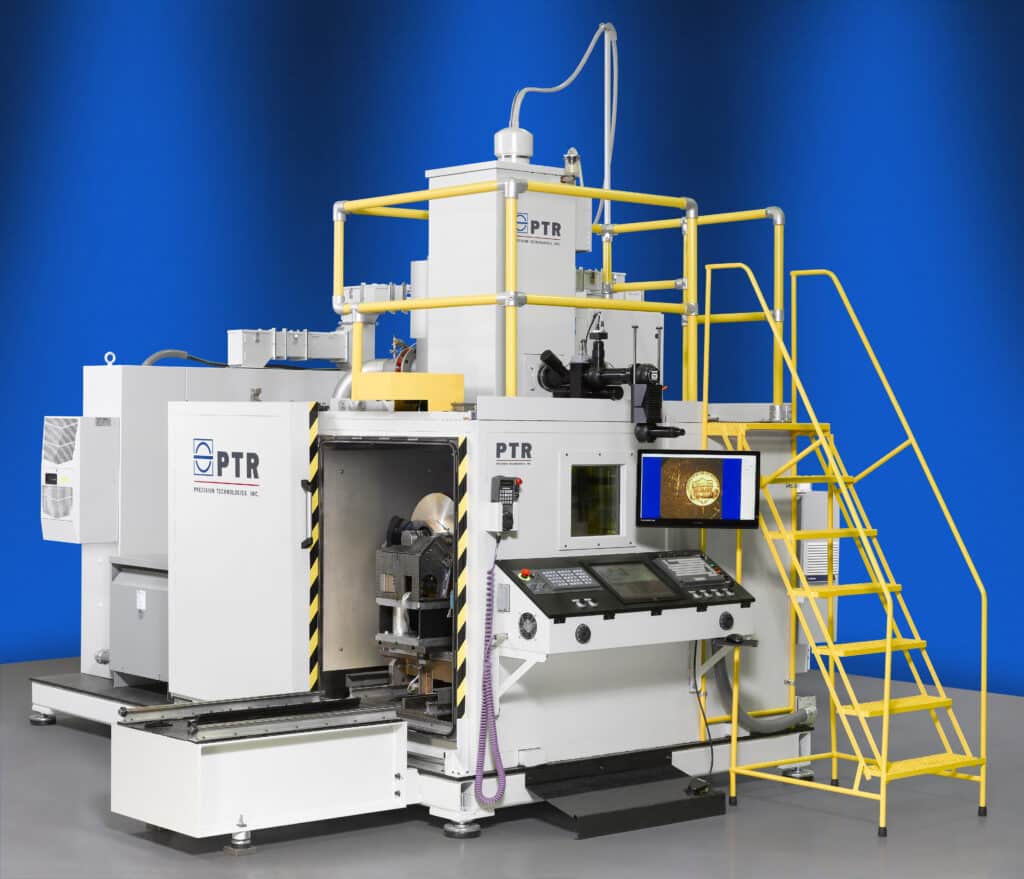

PTR Electron Beam Welding Systems

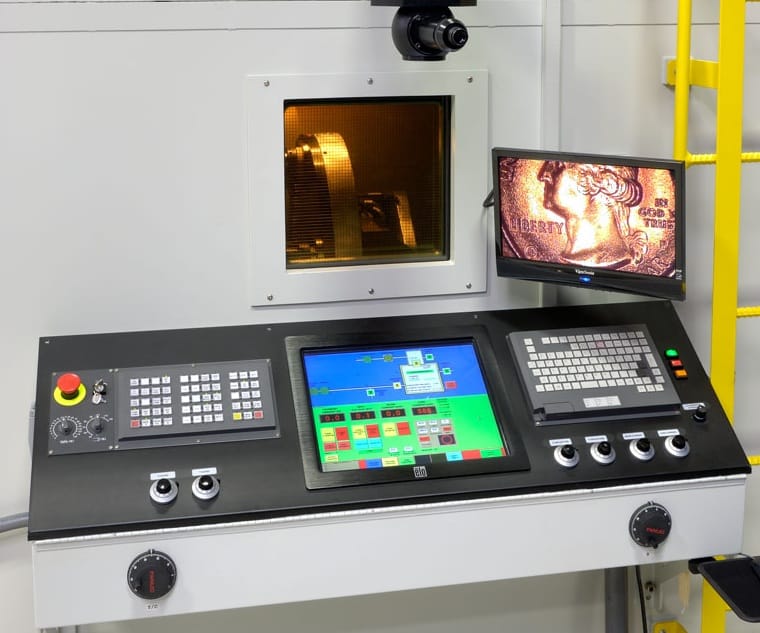

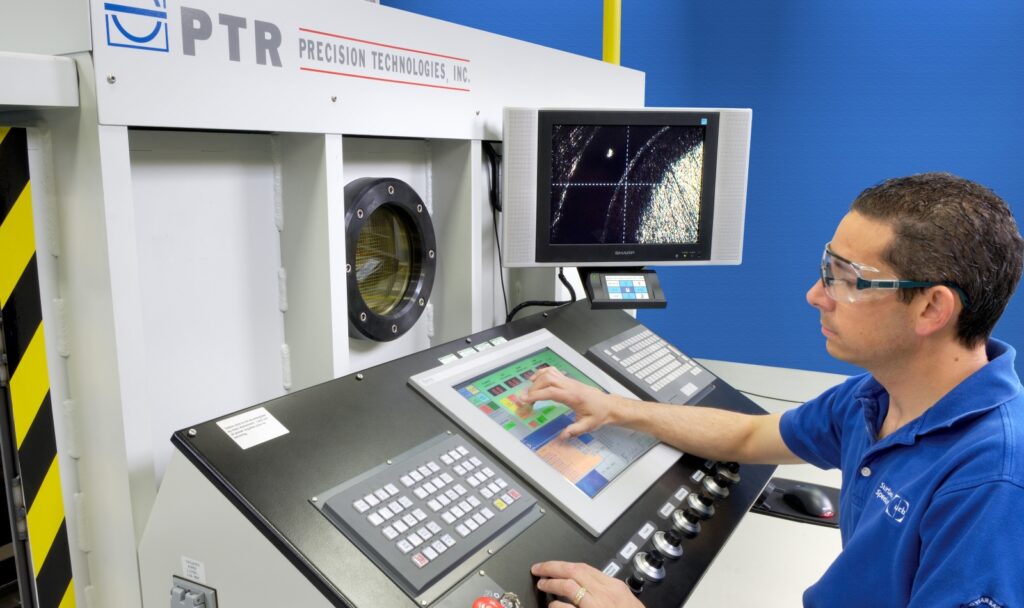

PTRs Modern EB Welder Operator Console

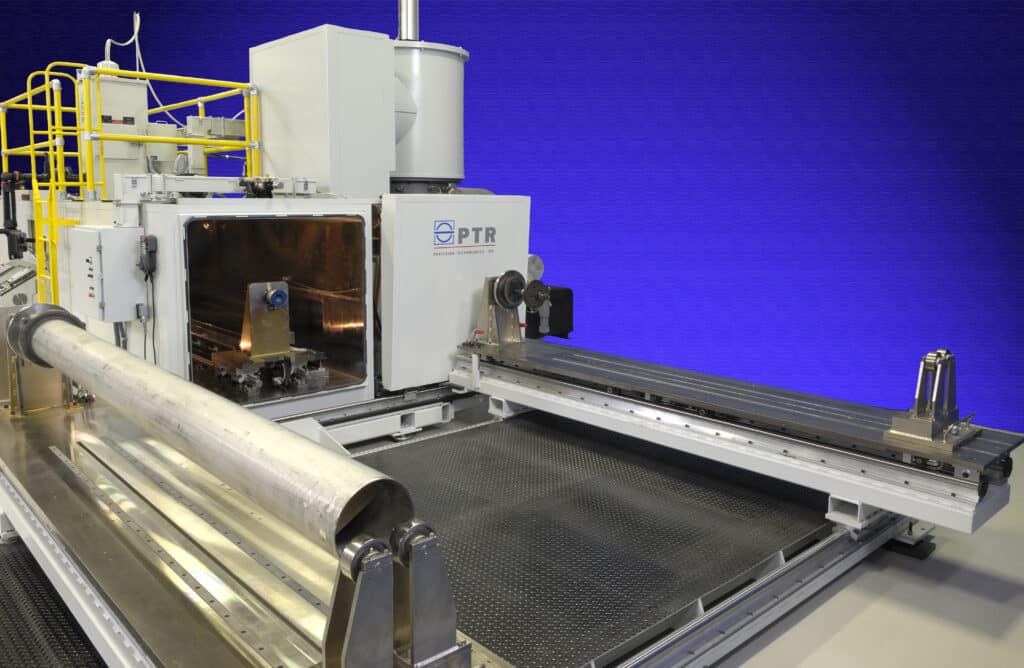

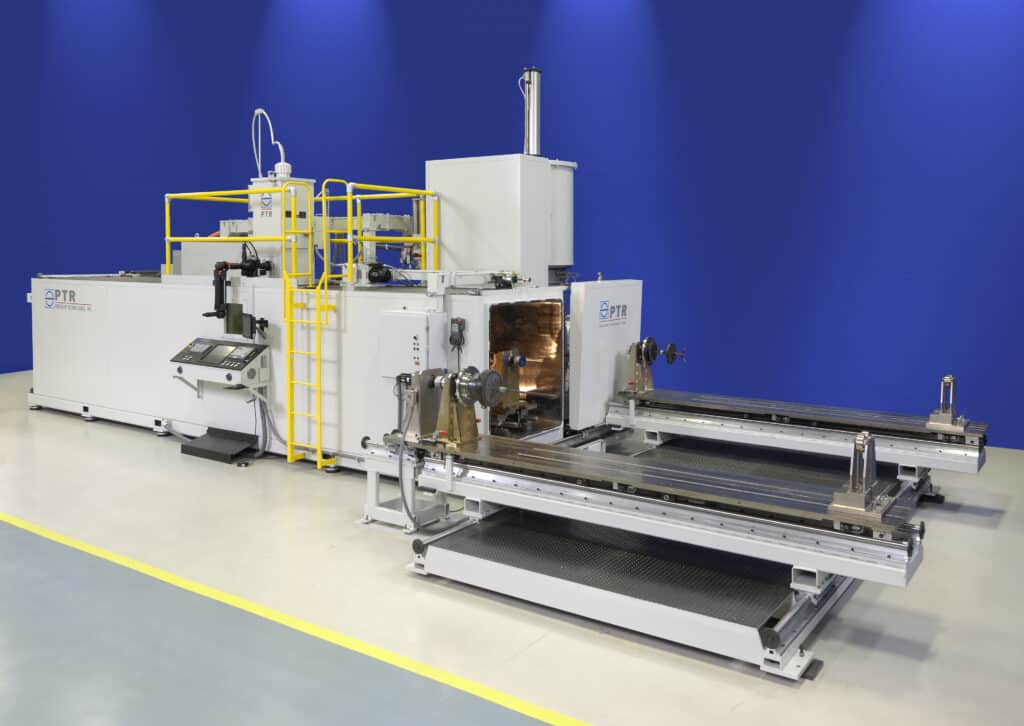

PTR EB Welding System with Extended Runout

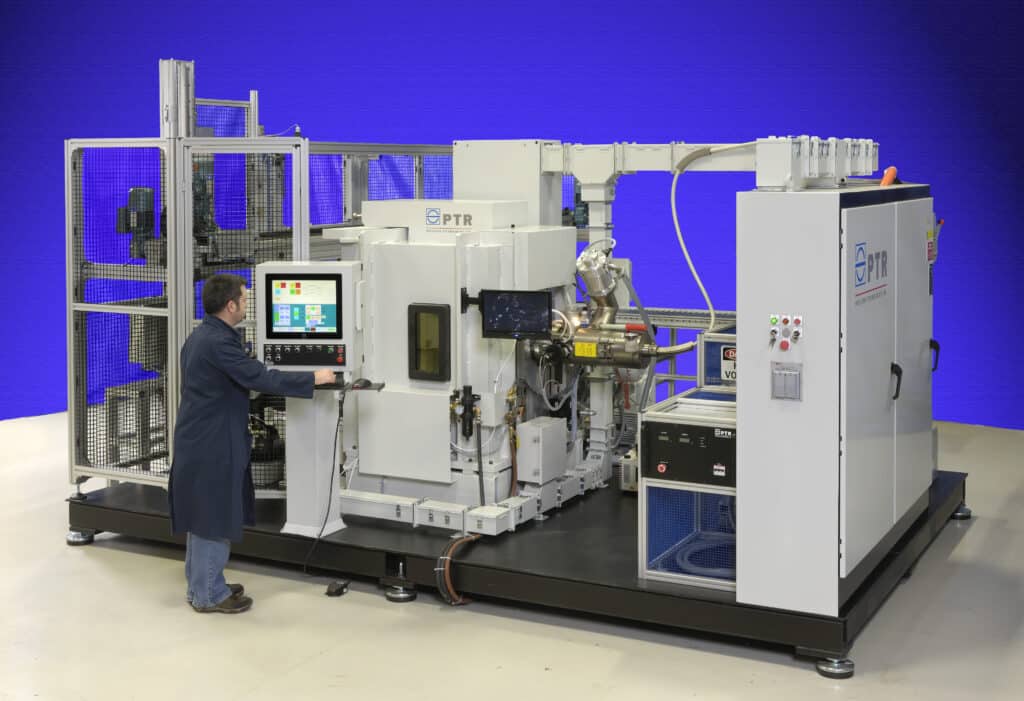

PTR Partial Vacuum EB Welder with Worker

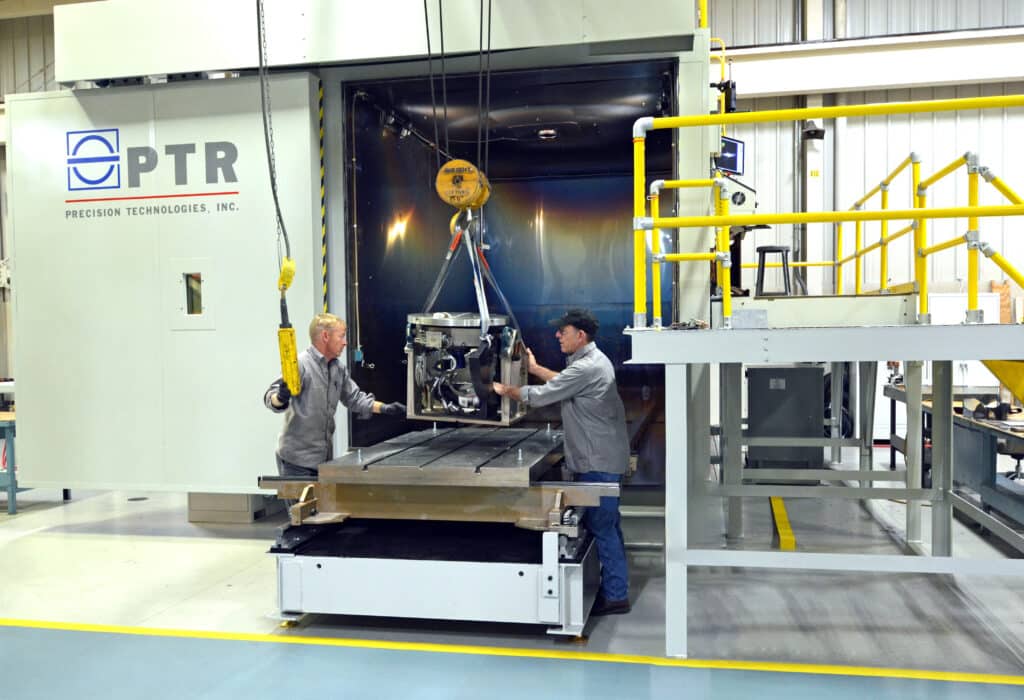

Rotary Positioner Install on a PTR EB Welder

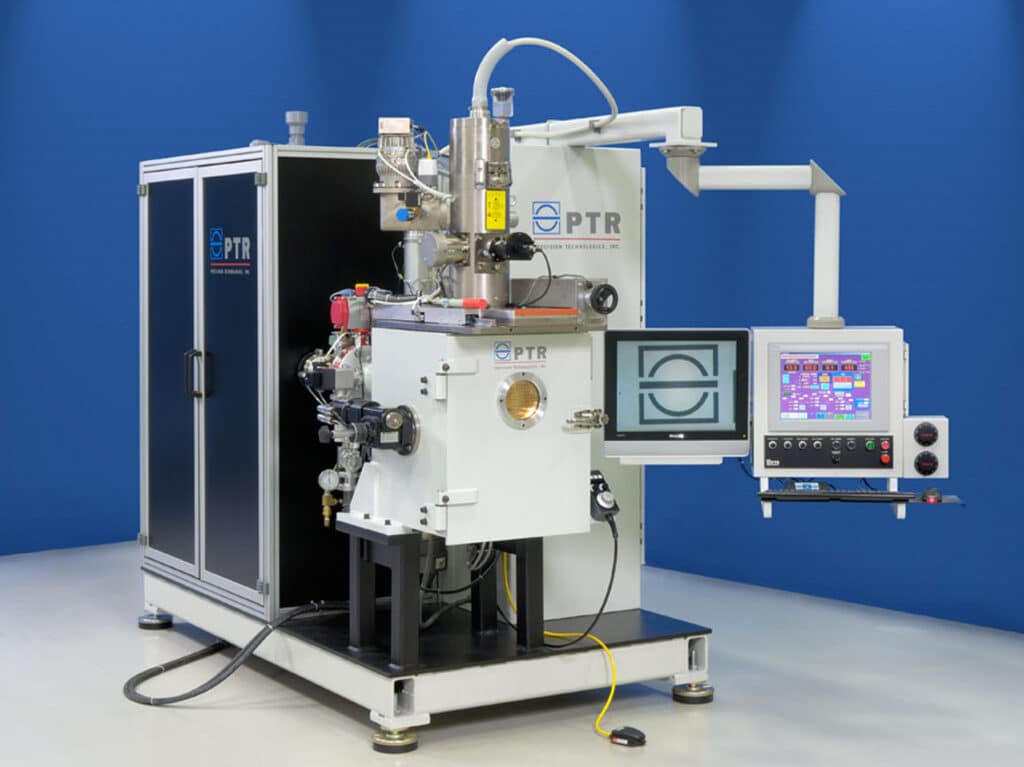

PTR Small Chamber EB Welding System

PTR ELECTRON BEAM WELDING SYSTEMS

Custom Engineered Equipment Solutions for Your Facility

PTR manufactures electron beam welders using proven designs and latest technologies

Long term customer relationships guide the efforts of PTR’s Engineering group and have led to increased functionality, reliability and ergonomics of our systems. These continual improvements have earned PTR’s electron beam welders the benchmark status in the EB Welding field.



Systems with vacuum chambers of virtually any size, with motion systems from simple rotation to 5-axis simultaneous contouring are available. High throughput, partial-vacuum systems for electron beam welding with shorter cycle times are also available. In addition to manufacturing EB systems, PTR’s full support includes tooling design, upgrades, accessories, field service, training, prototyping, process development, CNC programming and production welding services.



Contact:
Sales Department
Phone: (860) 741-9355
Email: sales@ptreb.com



Contact Us

HIGH-VACUUM EBOCAM CHAMBER SERIES

Standard Fixed-Gun EB Welding Systems

High Voltage Fixed Gun EB Welding System

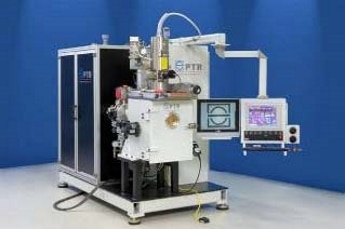

PTR Small Chamber EB Welding System
PTR’S standard, fixed generator CNC electron beam welding systems are available in multiple configurations, including both:



  • High Voltage (150kV) Beam Generation System
  • Low Voltage (60kV) Beam Generation System







View Systems

icon

INTERNAL GENERATOR EBOMOVE GANTRY SERIES

Mobile-Gun EB Welders

EBOMOVE Mobile Gun EBW
Gantry style, internal mobile generator EBW systems allow for optimal maneuverability within the vacuum chamber, and are available in 60kV models including:
  • Integrated rotary axes
  • Integrated swivel axes
  • Pivoting high-voltage cable connectors





View Systems

icon

PARTIAL VACUUM PRODUCTION SERIES

Fast Cycle EB Welders

Ebomat EBW Chamber Being Loaded
Developed for high throughput welding, these systems deliver an optimum solution for many high-volume applications and supports integration into automated production lines.









View Systems

icon

VARIANT EB TECHNOLOGY

Special Process EB Systems

PTR manufactures many different types of electron beam equipment, including special process EB-machines. These include our:



  • EBOPULS Series Electron Beam Hole Drillers
  • EBOCONT Series Continuous EB Strip Welders
  • EBONOVA Series Non-Vacuum Electron Beam Welding Systems





View Systems

icon

MODERNIZE YOUR EQUIPMENT

OEM Machine Retrofits & Upgrades

PTR provides accessories, retrofit packages and standard upgrades that integrate seamlessly with all generations of EB Welding Systems:



  • Hamilton Standard
  • Leybold / Leybold Heraeus
  • PTR-Precision Technologies, Inc.





View Retrofits

icon

CHECK BACK OFTEN

Used Systems

Used EB Welding Equipment
PTR occasionally has quality, used Electron Beam (EB) Welding systems available for refurbishment at our facility-
Or ship your old machine to us to modernize, and prolong its life span.







View Systems

icon

Featured industries using eb welding

Our Contract Electron Beam Welding Services Range from New Process Development to High Production Welding

Electron beam weld processing is being used in many critical industries. Whether you need equipment to handle parts ranging from several grams, to several tons- PTR can help design and build a custom EB welding system for your facility.

Explore all that PTR-Precision Technologies has to offer

PTR provides the technology to achieve the highest quality welds for the most critical applications for customers in the Aerospace, Defense, Power Generation, Electronics, Oil + Gas, Automotive, Medical, Semiconductor, Research and other industries. Whether you want equipment to weld in your own facility or to outsource your welding, PTR has a welding solution for you.





EB Weld Operatpr at Console

Contract EB Welding Services

Can’t justify a machine expense? Need a reliable production EB welding solution? Utilize PTR’s experienced Contract Welding team for your outsourced EB welding.

Wire Feeder Upgrade for PTR EB Welding System

Upgrade Your Old EB Weld System

PTR is the OEM for Leybold & Hamilton Standard. We have retrofit packages, accessories & upgrades that integrate with all generations of systems.

EB Welder Field Service

After Sales Support

We have experienced service technicians to ensure reliable performance, timely calibrations and fast repair times with OEM parts.

OEM Machine Training

Did your long time Weld Operator retire? Need help retraining new personnel? Let the EB Weld experts at PTR train your team. Subjects can be customized to specific customer requests and are available at your site.
