USED EB WELDING EQUIPMENT

OEM RETROFITS &

PTR occasionally has quality, used Electron Beam (EB) Welding systems available for refurbishment at our facility. Additional systems not listed below may be available. Please contact PTR directly for more information.



Example of a PTR Retrofit to a Hamilton Standard W2 150kV Electron Beam Welder

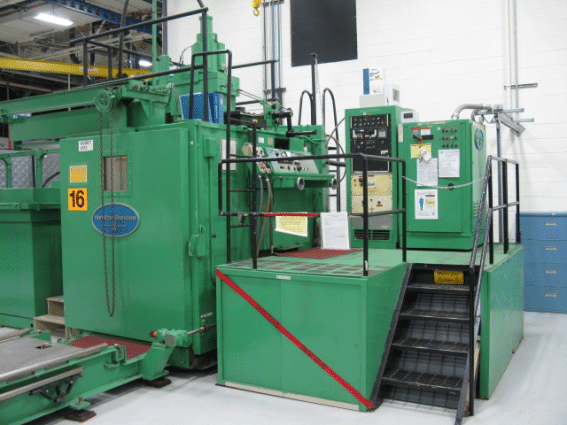

Before

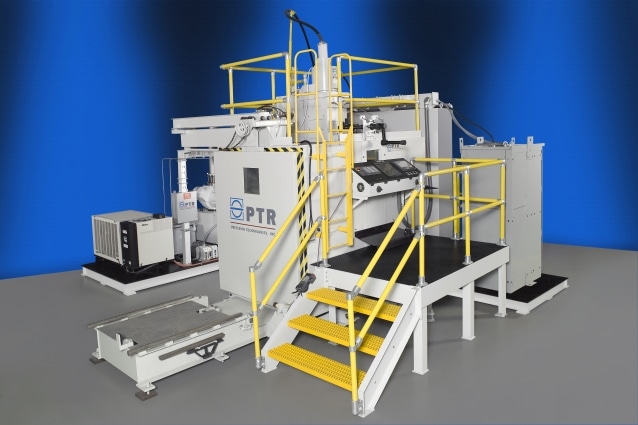

After

This 1970’s Hamilton Standard W2 EB Welder was purchased by a leading aerospace company and was refurbished and retrofitted at PTR with:

  • New Fanuc CNC
  • New Pumping System, Vacuum Gauges and Valves
  • New High Voltage Power Supply
  • New Electrical Cabinets and Wiring
  • New Vacuum Feedthroughs
  • New Operator Console
  • New Water Chiller
  • Rebuilt EB Column with Turbo Pump
  • Rebuilt XY Table
  • Refurbished Optics

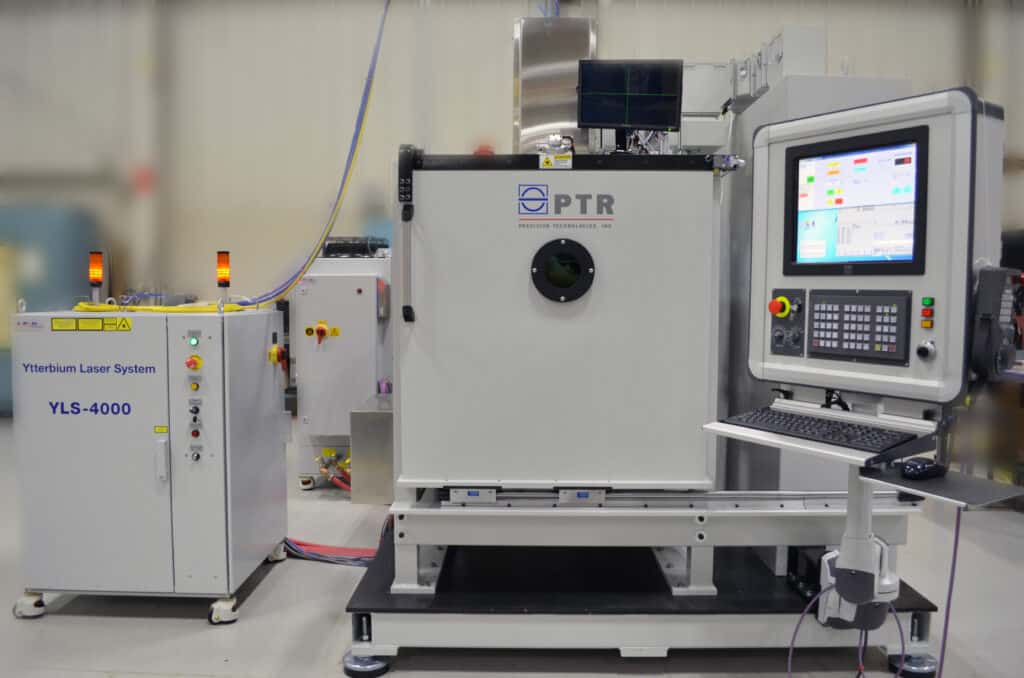

Used LASVAC Vacuum Laser Welding System

LASVAC 8200 Vacuum Laser Welding System

Beam Generation

  • IPG YLS 4000-CT (4000 W) fiber laser welding system
  • Laser power tunable from 400 W to 4000 W
  • IPG FLW D50 vertical welding head containing the collimating and focus optics

Controls

  • Fanuc CNC for control of powered axes and parameters
  • Ergonomically designed Operator’s Console with touch-screen control

Motion

  • CNC controlled precision XY Table
  • CNC controlled precision linear Z-axis (weld height position)

System

  • 36″L x 28″W x 36″H Work Chamber
  • Partial Vacuum pumping system
  • System Chiller
  • High Resolution Camera  & LED Chamber Illuminator
  • Crosshair for Visual Weld Joint Alignment
  • Basic Wire Feeder Assembly
  • Sound Enclosure for Pumping System
Download Detailed LASVAC Specs
