EB Welding of Defense Components

DEFENSE INDUSTRY

PTR EB WELDING CASE STUDIES

Electron Beam Welding is used for demanding joining tasks in many low- and high-tech applications within some of today's most sophisticated defense systems.

The highly repeatable EB welding process ensures safe, reliable performance for short and long term operations in a wide variety of extreme conditions. The combined knowledge of PTR’s engineering staff is available to contribute ideas based on our decades long experience of working with mission critical customer components.
Get a Quote

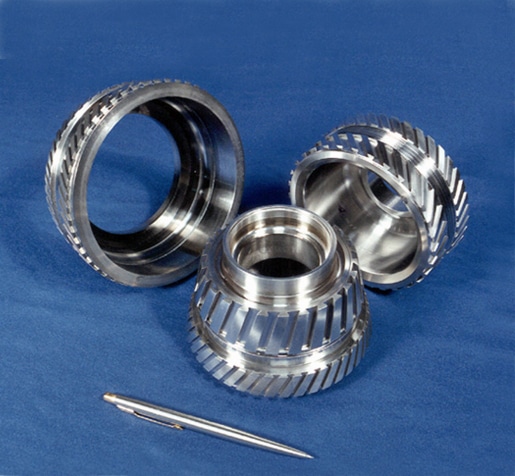

EB Welded m1 a1 assembly

Military Engine Component Welding

Engines and transmission components of heavy duty military vehicles operate under some of the most extreme conditions. In this application, three pieces of an engine disc spacer are electron beam welded in two passes at a common joint- the first a deep penetration weld and the second a broad final pass to fully consume the joint and smooth the weld top bead. The part was designed to be completed after the EB welding process requiring no further machining.



Description:

3 Pieces- approx. 6 in.
Diameter

Material(s):

Steel

Joint Geometry:

complex step and butt
joint

Weld Depth:

0.250 in. full penetration
pass followed by a broad,
shallow cosmetic pass
